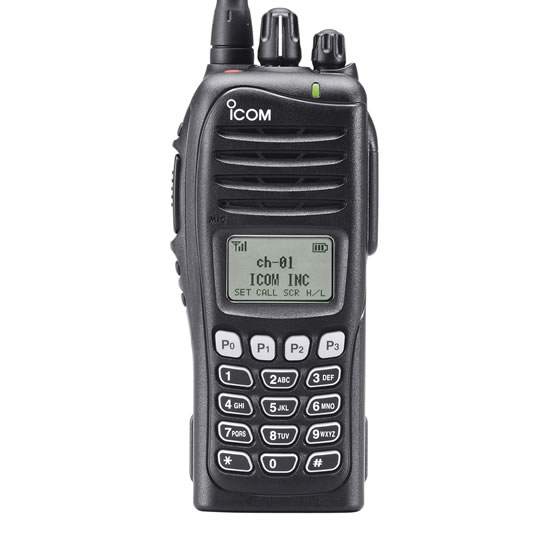

IC-f3161 Series

6.25kHz digital mode ready

A first in the LMR industry. With the optional UT-119H, the IC-F3161 series provides 6.25kHz digital narrow mode communication that meets the FCC 6.25kHz emission mask requirements for narrow banding, and increases efficiency of channel allocation and use of spectrum. The IC-F3161 series provides 2 optional slots: one optional slot for the UT-119H digital unit and one for another option board

Basic LTR^®/Conventional mixed mode operation

The IC-F3161 series provides LTR^®/conventional mixed mode operation. Group, selective (DTMF), and phone call are available in LTR^® mode.

IP54/55 Dust-protection and splash, water jet resistance

The IC-F3161 series meets IP54/55 requirements for dust-protection, splash and water jet resistance. Its durable construction is backed up by the aluminum
die cast chassis and polycarbonate casing, allowing reliable operation under harsh weather and environmental conditions.

Lithium-Ion battery pack

Supplied 2000mAh Li-Ion battery pack, BP-232, provides 14 hours of operating time. Icom’s rugged dual-rail guide securely locks the battery to the radio. Optional battery case BP-240 provides a convenient back up and great reassurance in an emergency.
* Typical operation Tx:Rx:Stand-by=5:5:90, power save on

Most popular signaling built-in

The IC-F3161 series has built-in 2-Tone, 5-Tone, CTCSS and DTCS signaling capabilities as standard for group communication or selective calling. 40 pairs of CTCSS/ DTCS memory channels are programmable independent of the operating channels. Also, the IC-F3161 series can decode ten 2-Tone codes or eight 5-Tone codes on a channel. When a matched tone is received, the following actions are programmable for each code.
